25kg Rice Packing Machine for Fertilizer Feed in Chemical Industry
This automatic weighing and packing machine is designed for efficient packaging of fertilizers, feed, and chemical products in 25kg quantities. The system handles various bag types including pre-made pouches, prefabricated bags, zipper pouches, spouted pouches, and shaped pouches with capacity up to 50kg.
Complete Packaging Line Integration
The integrated system includes material measuring, filling, bag feeding & clamping, bag conveying & sewing, with optional extensions for bag push down, bag shaping conveying, robot palletizing, and pallet stock systems.
Technical Specifications
| Parameter |
SXPA50 |
SXPA50P |
| Packaging Weight |
10-50KG |
10-50KG |
| Bag Size: L*W(mm) |
630-1100/350-650 |
630-1100/350-650 |
| Bag Material |
Woven bag (paint film); Kraft bag; Composite film plastic bag (film thickness ≥0.18mm) |
| Measuring Accuracy |
0.2%FS |
0.2%FS |
| Packaging Speed |
6-15 bags/minute |
2-5 bags/minute |
| Sealing Mode |
Woven bag: folding/seam; Kraft bag: heat sealing/seam; Composite film plastic bag: heat sealing |
Engineering Requirements
Electricity: 220/380V, 50Hz
Power: 14kw
Air Supply Pressure: 0.5-0.7MPa
Air Consumption: 1.8Nm³/min
Temperature Range: -15℃ to 45℃
Machine Components
- Empty bag storage
- Empty bag taking unit
- Bag management unit
- Bag sending unit
- Bag upper unit
- Bag clipping and material filling unit
- Bag holding unit
- Bag mouth guiding unit
- Heat sealing / bag sewing station
- Stand-up bag conveyor
- Electrical control section
Main Components & Brands
| Component |
Brand |
| Vacuum pump | Shanghai Zhongde |
| Cylinder | Japan SMC |
| Solenoid Valve | Japan SMC |
| Other pneumatic components | Japan SMC |
| Normal Motor | CPG |
| Servo Motor | Delta (Taiwan) |
| Heat sealing head | Dechao |
| PLC | Omron |
| Touch Screen | Weinview |
| Inverter | Delta (Taiwan) |
| Switching power supply | Schneider (France) |
| Switch | Schneider (France) |
| Air switch | Schneider (France) |
| AC contactor | Schneider (France) |
| Motor circuit breaker | Schneider (France) |
| Thermal relay | Schneider (France) |
| Limit switch | Schneider (France) |
| Photoelectric | SICK |
| Load cell | |
Key Features
- SIEM PLC and Weinview 10-inch color touch screen for simple operation and stability
- AirTAC magnetic valve, oil-water separator and cylinder in pneumatic system
- German FESTO magnetic valve, filter, and digital vacuum pressure switch in vacuum system
- Magnet switch or optoelectronic switch detection units on all actuating mechanisms for safety and reliability
Working Process
- Automatic bag seizing
- Automatic bag opening
- Automatic bag feeding & material auto filling
- Bag automatic transferred by the conveyor
- Auto bag sewing / heat sealing (folded)
- Finished bag output
Packaging and Delivery

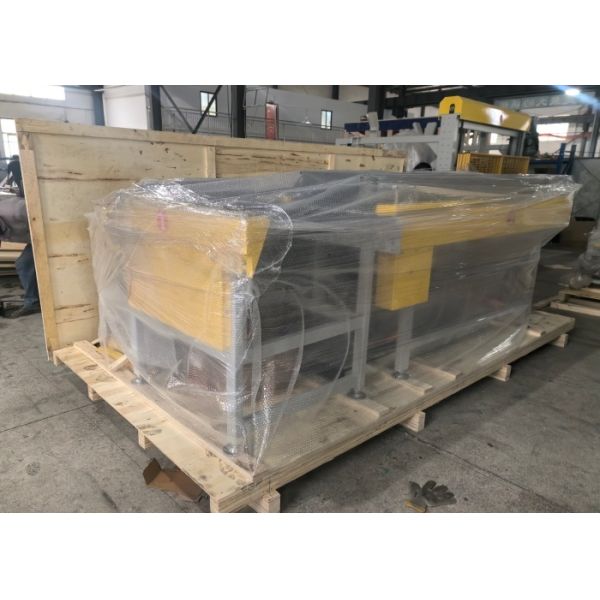

Packing: Wrapped with film first, then packaged with standard wooden cases
Delivery: Standard sea transportation with alternative methods available upon request
